ProjectXL vs MS Project

MS Project has been around since 1984 and has long been the go-to option for teams that needed an affordable scheduling tool with good capabilities. But the product has not seen a major feature advance in many years, and with Project Online now scheduled for end of life in September 2026, this is a good moment for current users to evaluate what comes next.

This document is designed to help experienced MS Project users understand what to expect when moving to ProjectXL, with a focus on the project-controls capabilities that matter most in day-to-day use.

Project Organization
Schedule Planning
Cost Planning
Performance Tracking
Budgets and Funding
Scenario Management
Reporting
User Experience

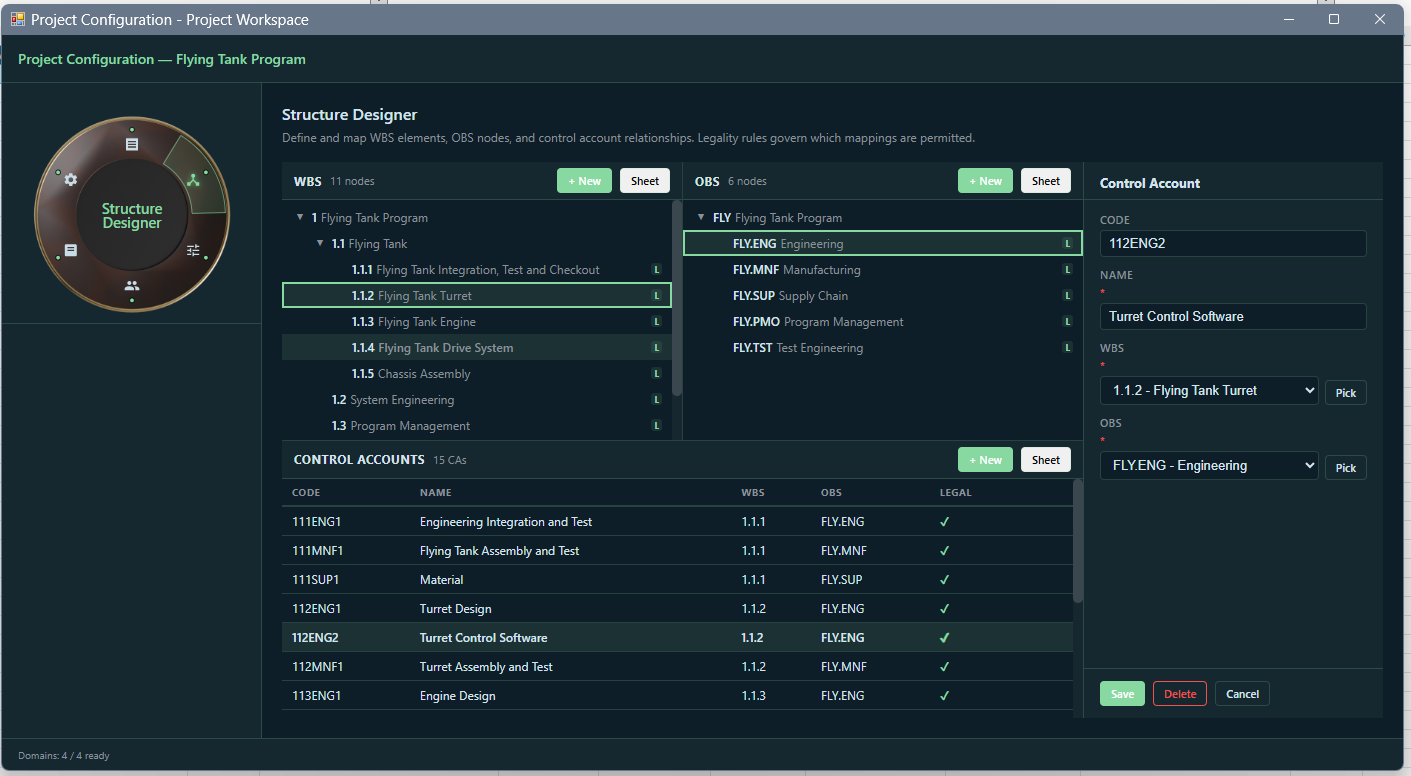

Project Organization

ProjectXL places much more emphasis on project structure than MS Project because structure is not treated as optional administrative detail. In ProjectXL, WBS, OBS, Control Account, and Work Package are governed parts of the operating model, and the Work Package is the core integration boundary for downstream planning. That means schedule, labor, non-labor, and cost planning all start from the same structural foundation instead of being stitched together later through conventions, manual rollups, or side spreadsheets.

This is important because ProjectXL is designed for cost-schedule integration, not just schedule authoring. Project Configuration defines the authoritative project structure, metadata rules, and legal structural relationships, while Work Package Planning turns each Work Package into a planning-ready execution container with scope meaning, estimate rationale, assumptions, and constraints. By the time detailed planning begins, the system already knows how the work is organized, what financial and organizational context it belongs to, and what metadata must follow it downstream.

The practical result is a more disciplined but far more coherent model. MS Project gives the user broad freedom to organize work in whatever way seems convenient at the moment, which can be useful early but often leaves cost, schedule, and reporting logic only loosely connected. ProjectXL asks for more rigor up front so that activities, assignments, non-labor events, rates, and reporting outputs all inherit from the same governed structure. That structure is what makes integrated planning possible rather than leaving integration as something the team has to reconstruct after the fact.

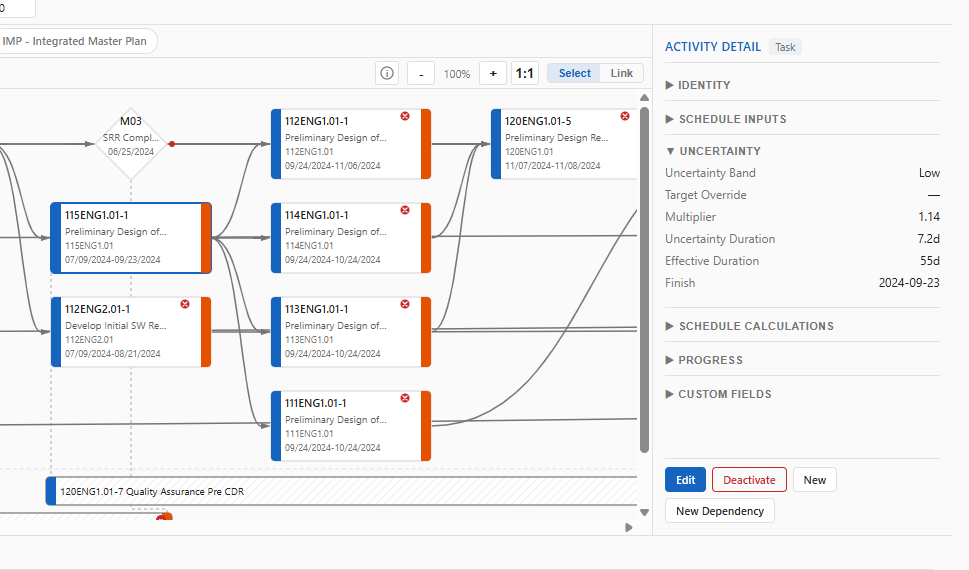

Schedule Planning

ProjectXL is designed to produce more believable schedule models by making uncertainty and logic more explicit. The familiar task fields are still there, but users can also define uncertainty directly on the task through governed uncertainty bands and confidence-based duration treatment. That makes contingency visible in the task sheet and Gantt view instead of hiding it in side calculations or leaving it entirely to outside judgment, which gives the scheduler a more realistic model from the start.

The network model is also stricter and more expressive. ProjectXL uses edge-based relationships rather than the node-based approach used by MS Project, which allows true hammock tasks and makes it possible to represent non-task events such as deliveries, trips, procurement actions, or facility windows directly in the schedule model. Just as important, the network rules are intentionally unambiguous: if a task edge has a constraint it cannot also have predecessors, and if it has predecessors it cannot also carry a conflicting edge constraint. That protects the integrity of the model by forcing one clear source of date authority instead of letting the software guess what the user meant.

ProjectXL also builds multiple driving path analysis directly into the schedule result. In MS Project, users often have to distort durations or force a milestone to the end of the schedule just to study what is driving it. ProjectXL allows multiple driving path targets within the same schedule and runs separate backward passes for each one, so users can examine different drivers without rewriting the plan to make them visible. The result is a cleaner analytical workflow and a schedule that is easier to trust because the act of analysis does not change the model being analyzed.

Cost Planning

ProjectXL handles cost planning through an indirect rate engine built around Result Units, Rate Stacks, and governed rate sheets. Instead of treating burden as a black-box rollup, the system defines an ordered calculation chain that shows how direct cost objects expand into the reporting and indirect-cost views the organization actually uses. That makes the cost model more explicit, easier to validate, and easier to govern than the more ad hoc cost-field approach common in MS Project environments.

For labor planning, the user assigns resources, hours, dates, and contours inside the Work Package, and ProjectXL calculates time-phased direct cost before applying rate stack expansion through the selected rate sheet. The result is not just one loaded number. The system can produce one row per Result Unit, showing how cost is distributed across direct and indirect views, which gives planners immediate feedback about the cost effect of staffing and schedule choices.

ProjectXL applies the same planning model to non-labor cost as well. Material, travel, ODC, and external-system events are planned as explicit time-phased events, and those events can also carry rate-stack logic so they roll into the same governed analytical output as labor. The practical advantage is that labor and non-labor cost are planned in one integrated model, using the same Work Package structure, the same rate governance, and the same result-unit framework, instead of being split across separate tools and spreadsheets that have to be reconciled later.

Performance Tracking

ProjectXL treats performance tracking as a governed status-cycle workflow rather than a loose collection of field edits. Users work in a dedicated status and forecast lane where they can record current execution reality for tasks and non-labor events, see the active status period, and compare the current cycle against the prior forecast reference. That keeps status capture separate from plan authoring and schedule diagnostics, while still making it clear what changed, what remains, and what those changes imply for project completion.

Estimate to Complete is built as an explicit current-period true-up, not as a hidden byproduct of status entry. ProjectXL starts from the prior forecast, then revises the remaining labor and non-labor work to the right of the status date based on current status, schedule movement, non-labor execution updates, and any available actuals. In plan-only mode, EAC equals ETC. When actuals are available, EAC is shown explicitly as actual costs plus ETC. That gives users a more transparent and defensible forecast process than simply rolling forward percent complete and hoping the remaining cost picture stays credible.

ProjectXL also includes earned value capability inside that same governed performance workflow. At reporting month-end, the system can persist earned value using the approved baseline, Work Package EV methods, weighted activity status, and governed non-labor recognition triggers, while also surfacing BCWS, BCWP, and ACWP for the current period. The practical advantage is that status, forecast, and earned value remain connected, but they are not collapsed into one ambiguous calculation path. Users can see how performance is measured, how the forecast is changing, and how both relate back to the approved baseline.

Scenario Management

ProjectXL handles scenario management through a governed snapshot service rather than through duplicate baseline columns or informal workbook copies. Users can save the current planning state as a Baseline, Forecast, or What-If snapshot, and each snapshot captures a meaningful point-in-time view of the plan on the same live working surface the team already uses. That is a major practical advantage over the common spreadsheet habit of creating side files and hoping everyone remembers which one is authoritative.

Another strength is that snapshots are designed to support comparison and recovery, not just storage. Any readable snapshot can be loaded back onto the live workbook, the system keeps showing which snapshot was last loaded and when it was loaded, and saving a new snapshot is a compare-and-decide workflow rather than a blind overwrite. Users can review the drift between the current workbook and an earlier checkpoint before deciding whether to overwrite an existing snapshot or create a new one, which makes scenario work more deliberate and easier to trust.

ProjectXL also makes snapshots useful for both governance and analysis. One Baseline snapshot can be designated as the active project baseline, forecast checkpoints can be preserved for later comparison, and what-if branches can be saved without creating a second planning environment. Because snapshots include self-contained work-package payloads and resolved cost records, they provide a more complete and credible basis for restore, baseline-to-forecast comparison, and trend review than a simple schedule file copy with uncertain provenance.

Reporting

ProjectXL treats in-product reporting as an execution support capability, not as a separate truth model. The built-in reporting surfaces are designed to help planners, schedulers, and project controls users answer immediate operational questions using the same governed state that planning, status, and forecasting already rely on. Readiness is checked before outputs are generated, blocked reports identify the upstream issue that must be corrected, and report generation does not mutate the underlying plan just to make a package succeed.

That same design principle also explains why ProjectXL separates reporting from deeper analytical interpretation. Schedule Analysis and Schedule Risk Analysis provide governed diagnostic and probabilistic insight inside the product, but they remain read-only analytical surfaces rather than ad hoc reporting sandboxes. When users need broader portfolio analytics, richer dimensional models, or durable analytical packages for downstream delivery, ProjectXL is designed to generate analytics-ready datasets instead of trying to turn the in-product UI into a full business intelligence platform.

This is where ProjectXL's Excel-native architecture becomes a real advantage. Because the authoritative data already lives in Excel tables, users can immediately shape, clean, filter, and extend it with native formulas, VBA, and Power Query before feeding it into Power BI or similar tools. In other words, ProjectXL is not trapped inside a closed reporting layer. Once the data has been updated and validated inside the governed model, it is already staged in one of the best possible environments for more advanced analytical work.

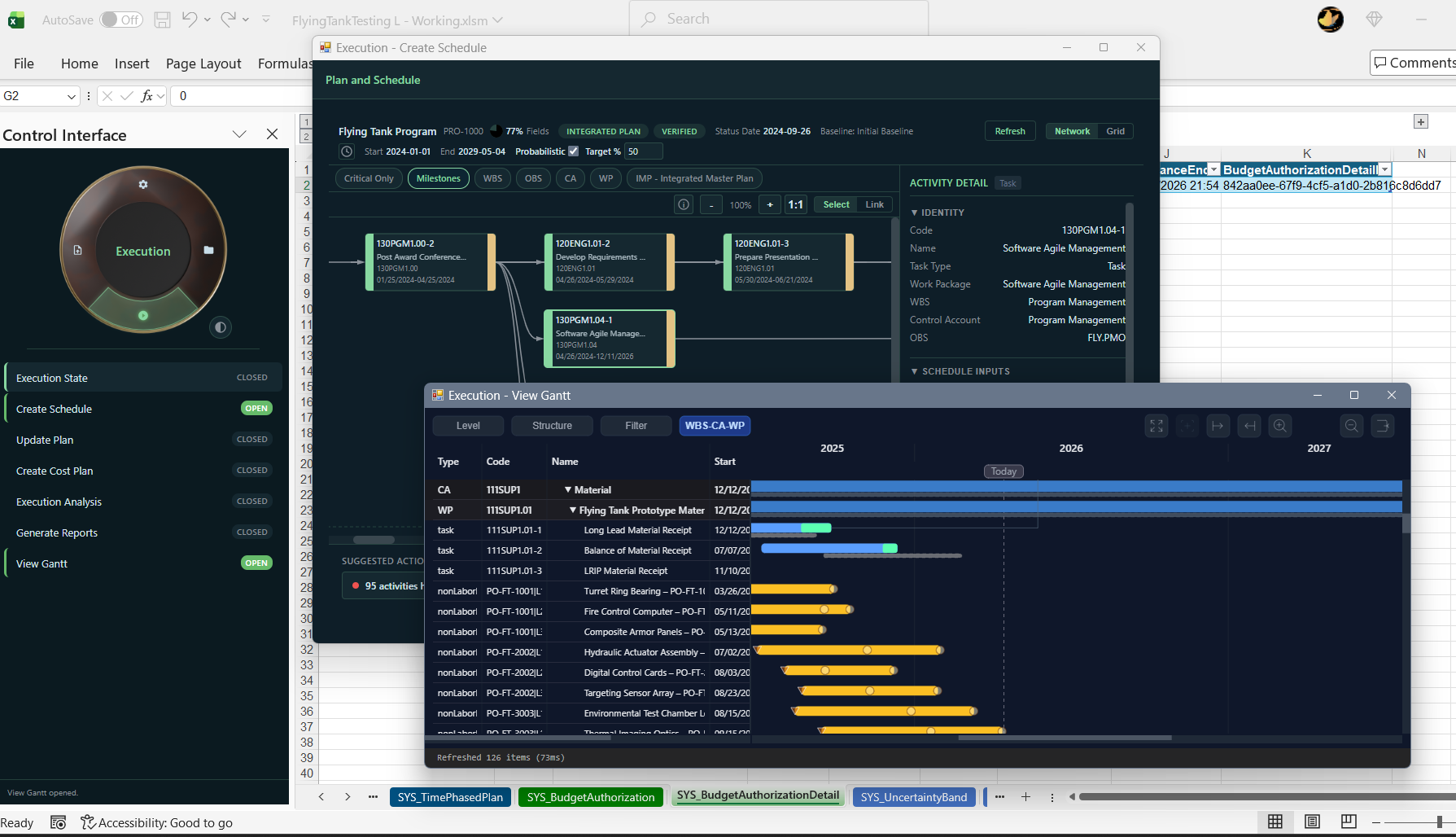

User Experience

ProjectXL is designed to feel more guided and more modern than the traditional Excel add-in experience. The platform uses a governed shell model, focused workspace views, and modern web-based task pane and floating-window surfaces so users are not forced to hunt across dozens of sheets, menus, and modal dialogs to figure out what to do next. The interface is built to keep the workbook aligned to the task the user is actually performing, reduce accidental context switching, and make the current workflow state visible instead of buried.

That design is also meant to make the product feel more intuitive and, in a practical sense, more game-like. Users are given clearer lanes, clearer next steps, clearer readiness signals, and clearer recovery paths when something is blocked. Instead of treating every feature as an isolated screen, ProjectXL tries to show the user where they are, what goal they are working toward, what prerequisite is missing, and what action should come next. The result is an interface that encourages forward progress rather than trial-and-error clicking.

AI Assistance extends that same philosophy. It is designed to provide context-aware recommendations grounded in the governed project state, relevant history, and the instruction set for the user's current scenario rather than generic advice detached from the model. The AI remains advisory, but it is intended to be meaningfully helpful: explaining why something is blocked, interpreting what changed, identifying the next appropriate action, and helping the user move through planning and execution work with better context and less friction.
